Frame Unisex alloy hybrid frame with downtube battery mount
Fork Suspension fork, 50mm travel with disc mounts
Headset 1-1/8″ Threadless
Handlebar Lo-Rise MTB handlebars, 620mm
Stem Alloy Adjustable Quill, 90mm extension
Grips Black
Gear Shifters Shimano 21spd Thumbshifters
Rear Derailleur Shimano RD-TY300 7spd
Front Derailleur Shimano FD-TY510 3spd
Freewheel Shimano 7spd 14-28T freewheel
Chainwheel 170mm Crank, 48x38x28T Chainrings
Bottom Bracket Cartridge type 122.5mm
Motor BAFANG 36V 250W Rear Hub Motor
Battery 36V 10Ah (360Wh) Downtube mounted lithium battery
Display Handlebar Mounted LED Display
Speed Sensor 12 point pedal sensor
Charge Time 5hrs
Approximate Range 40-45km
Brakes Mechanical Disc Brakes (160mm rotors)
Brake Levers Alloy Lever including motor cut-off switch
Pedals 9/16″ axle
Front Hub 36H Alloy Nutted
Rear Hub 36H Alloy Nutted
Rims 700C Double Wall Alloy Disc Rims
Spokes 13G
Tyres 700 x 38C Multi-Terrain hybrid tyres
Saddle Comfort hybrid saddle
Seat Post 27.2mm x 350mm
Kickstand Alloy centre mount
Mudguards Full length, plastic
Accessories LED Handlebar display, 3 level power assist + walk assist
Weight 20kg

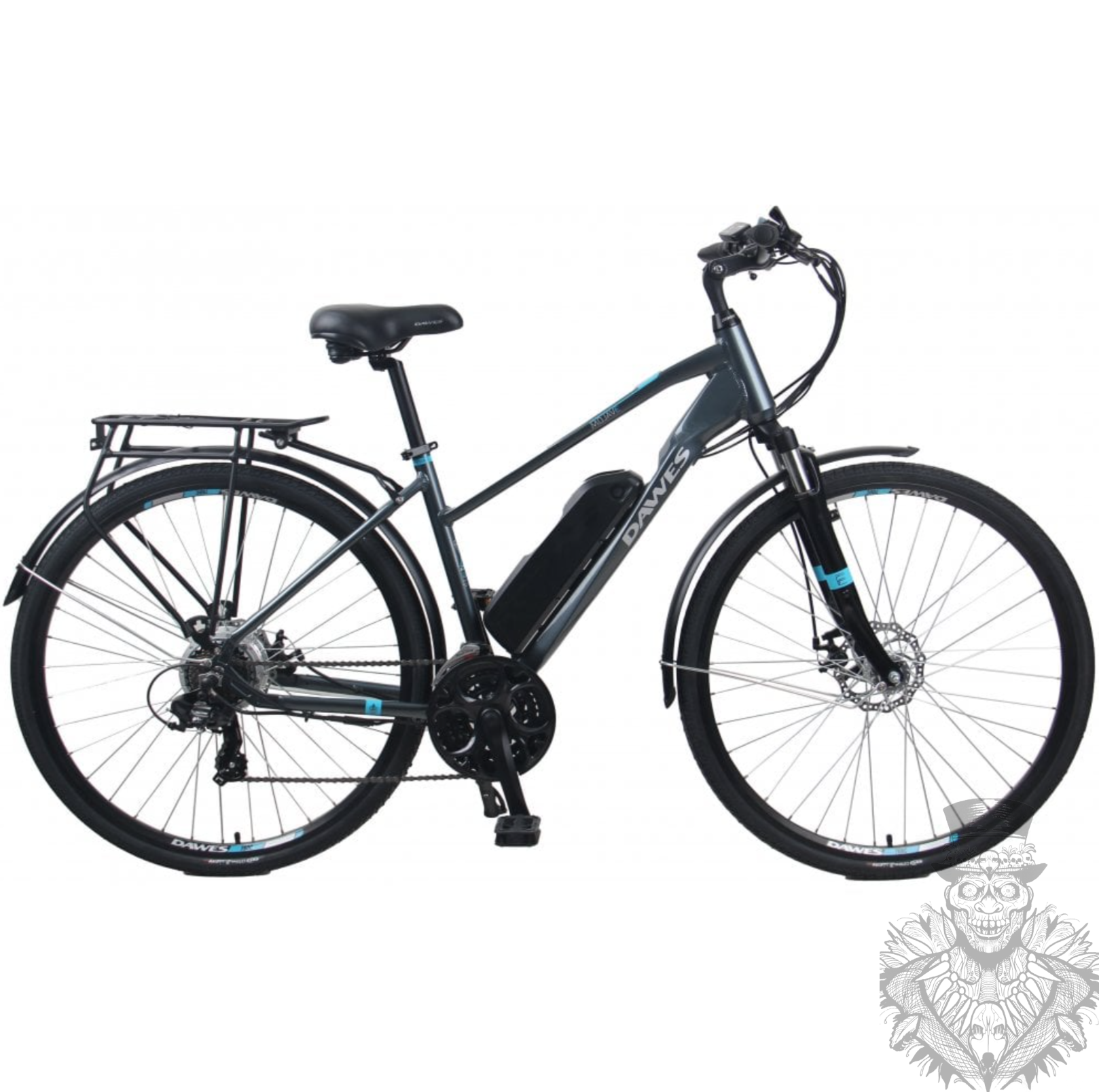

Dawes Mojav-e DAWES Mojav-E


Out of stock
